Aluminium Extrusion

Over the years we have developed a series of aluminium profiles which we extrude in-house in our state of art facilities. Some of those include aluminium decking system, aluminium skirting, solar panel installation profiles, L-profiles.

We pride ourselves on our dedicated, professional service that provides dependable, practical front-line support to our clients at every stage of the project.

Our solutions are developed with a collaborative approach that ensures every element is tailored, planned, managed, controlled, and delivered to exceed the client’s requirements for quality, cost-effectiveness, functionality, and robustness.

Due to the continuous investment into our facilities, we now have two aluminium extrusion press machines, 7-inch and 10-inch. This allows us to work on multiple projects simultaneously without the need to stop.

During the extrusion cycle, the profiles are subject to strict quality control. Their dimensions are measured to check whether they are within acceptable tolerances, and their surface is checked for imperfections.

Our production of aluminium profiles complies with the following standards:

•    EN 573 – Aluminium and Aluminium Alloys  — Chemical Composition and Form of Wrought Products;
•    EN 755 – Aluminium and Aluminiums Alloys — Extruded rod/bar, tube and profiles;
•    EN 12020 – Aluminium and Aluminum Alloys — Extruded precision profiles in alloys EN AW- 6060 and EN AW-6063;
•  ISO 2768 – Mechanical parts, tolerances, other dimensions and deviations. (Applied to parts with metal removing treatment — cutting, milling, punching).

Prior to extrusion, each aluminium extrusion die has to be prepared to be placed on the press line. Camino has a qualified Extrusion Dies Department where our specialists prepare, correct and clean every die before and after extrusion. We collaborate only with the best die producers on the market and we use high-quality die-correcting tools.

The extrusion dies are nitride with the latest generation fully automatic NITREX nitriding system. All process stages – purging, heating, nitriding and cooling are performed in one uninterrupted cycle. The nitriding furnace is equipped with multiple separate heating zones for accurate temperature control. The installation has its own personalized N-EXT control system.

The 18MN, 7-inch front-loading press is equipped with the patented energy-saving system P.E.E.S.S., which can have an energy savings of 25%. The PE Manager system automatically manages the furnace temperature, press parameters and puller force to simplify the operation of the stretcher, adjusting the parameters according to each new profile. The users with the relevant access rights log in to the software application at any time and from anywhere in the world via an internet connection to track the production plan of the press line and see in real-time which production order is currently in extrusion, what profiles have been produced before that and what is scheduled next for production. All this information is also automatically transferred to the accounting software of the company.

manufacturing
curtain wall

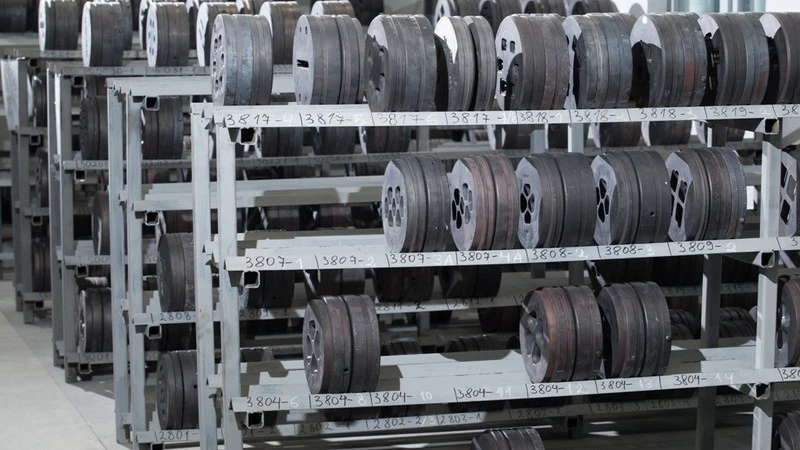

Die rack

aluminium extrusion

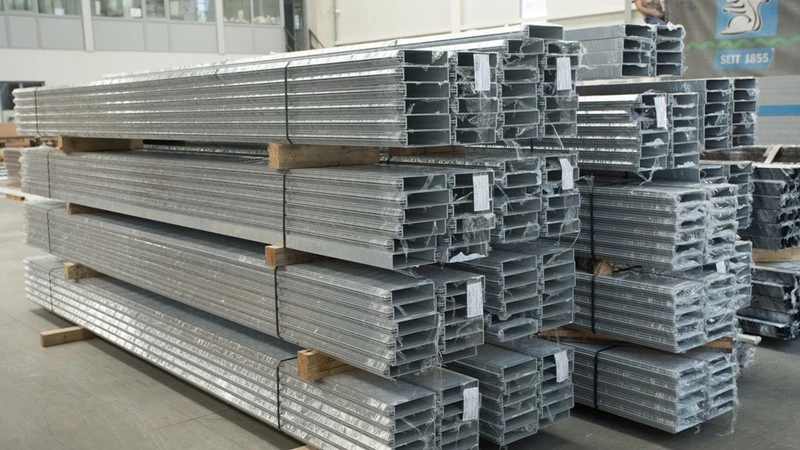

Extruded aluminium profiles ready for shipping

aluminium extrusion die

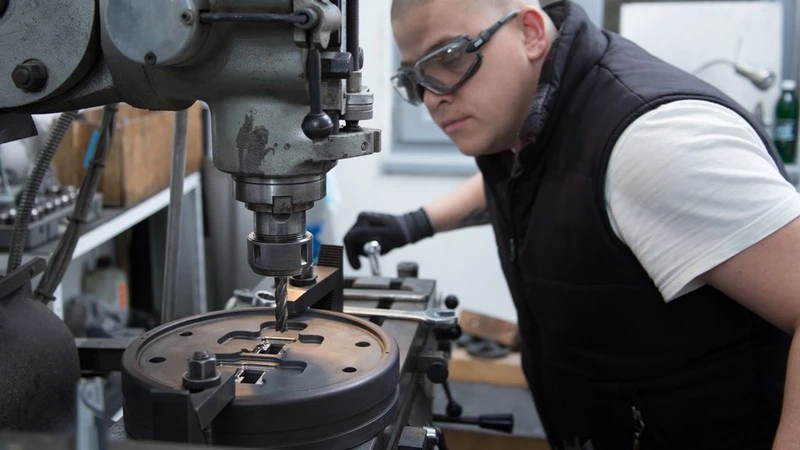

Die milling to remove imperfections

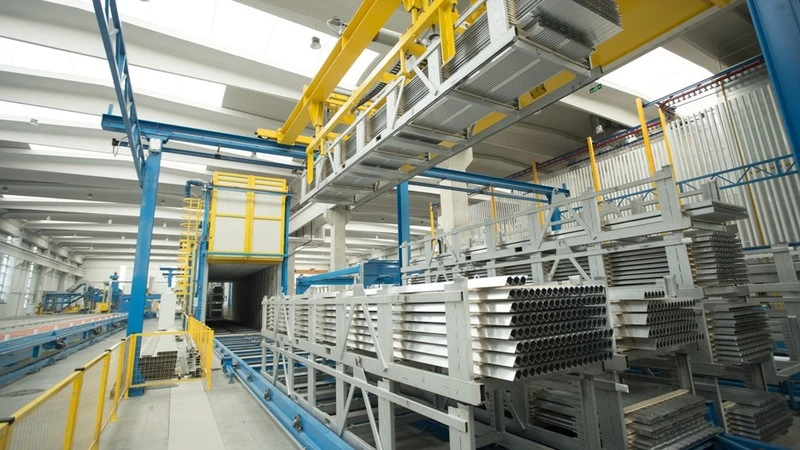

aluminium extrusion press

7-inch press

curtain wall

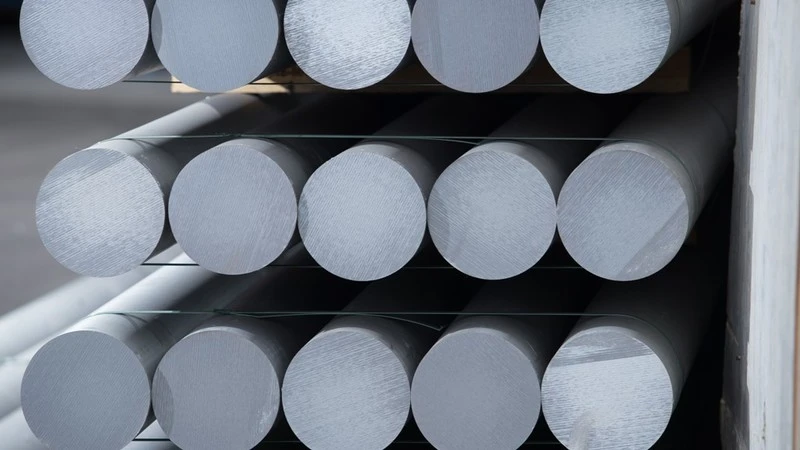

Raw aluminium rods

curtain wall

10-inch press
